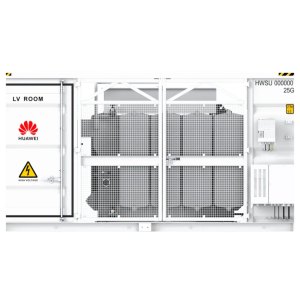

Smart Transformer Station
JUPITER-3000K-H1
Prefabricated and Pre-tested, No Internal Cabling Needed Onsite Compact 20’ HC Container Design for Easy Transportation
High Efficiency Transformer for Higher Yields Lower Self-consumption for Higher Yields
Real-time Monitoring of Transformer, LV Panel and RMU High Precision Sensor of LV Electricity Parameters Remote Control of ACB and MV Circuit Breaker
Robust Design against Harsh Environments Optimal Cooling Design for High Availability and Easy O&M Comprehensive Tests from Components, Device to Solution
Smart Transformer Station
JUPITER-6000K-H1
Prefabricated and Pre-tested, No Internal Cabling Needed Onsite Compact 20’ HC Container Design for Easy Transportation
High Efficiency Transformer for Higher Yields Lower Self-consumption for Higher Yields
Real-time Monitoring of Transformer, LV Panel and RMU High Precision Sensor of LV Electricity Parameters Remote Control of ACB and MV Circuit Breaker
Robust Design against Harsh Environments Optimal Cooling Design for High Availability and Easy O&M Comprehensive Tests from Components, Device to Solution
Smart Transformer Station
JUPITER-9000K-H1
Prefabricated and Pre-tested, No Internal Cabling Needed Onsite Compact 20’ HC Container Design for Easy Transportation
High Efficiency Transformer for Higher Yields Lower Self-consumption for Higher Yields
Real-time Monitoring of Transformer, LV Panel and RMU High Precision Sensor of LV Electricity Parameters Remote Control of ACB and MV Circuit Breaker
Robust Design against Harsh Environments Optimal Cooling Design for High Availability and Easy O&M Comprehensive Tests from Components, Device to Solution
Smart Transformer Station (JUPITER Series) Comparison
| Feature | JUPITER-3000K-H1 | JUPITER-6000K-H1 | JUPITER-9000K-H1 |
|---|---|---|---|
| Category | Smart Transformer Station | Smart Transformer Station | Smart Transformer Station |
| Compatible Inverters | SUN2000-330KTL-H1 / H2 | SUN2000-330KTL-H1 / H2 | SUN2000-330KTL-H1 / H2 |
| Max. LV AC Inputs | 11 | 22 | 30 |
| AC Power | 3,300 kVA @40°C / 2,970 kVA @50°C | 6,600 kVA @40°C / 5,940 kVA @50°C | 9,000 kVA @40°C / 8,250 kVA @50°C |
| Rated Input Voltage | 800 V | 800 V | 800 V |
| LV Main Switches | ACB (2,900A), MCCB (11×400A) | ACB (2×2,900A), MCCB (15×400A) | ACB (4,000A×2), MCCB (15×400A) |
| Rated Output Voltage | 11–35 kV / 13.8–34.5 kV | 11–35 kV / 13.8–34.5 kV | 22–35 kV / 34.5 kV |
| Frequency | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz |
| Transformer Type | Oil-immersed, Conservator Type | Oil-immersed, Conservator Type | Oil-immersed, Conservator Type |
| Cooling Type | ONAN | ONAN | ONAN |
| Transformer Vector Group | Dy11 | Dy11-y11 | Dy11-y11 |
| Transformer Oil | Mineral Oil (PCB Free) | Mineral Oil (PCB Free) | Mineral Oil (PCB Free) |
| Transformer Efficiency Index | Tier 1 / Tier 2 (EN 50588-1) | Tier 1 / Tier 2 (EN 50588-1) | Tier 1 / Tier 2 (EN 50588-1) |
| RMU Type | SF6 Gas Insulated | SF6 Gas Insulated | SF6 Gas Insulated |
| Protection Degree | IP54 | IP54 | IP54 |
| Internal Arc Classification | IAC A 20 kA 1s | IAC A 20 kA 1s | IAC A 20 kA 1s |
| Communication | Modbus RTU (SmartLogger3000B) | Modbus RTU (SmartLogger3000B) | Modbus TCP (SmartACU2000D) |
| UPS Option | 2 kVA (Optional) | 2 kVA (Optional) | 2 kVA (Optional) |
| Dimensions (W×H×D) | 6,058 × 2,896 × 2,438 mm (20’ HC Container) | ||
| Weight | < 15 t | < 22 t | < 28 t |
| Operating Temperature | -25°C ~ 60°C | -25°C ~ 60°C | -25°C ~ 60°C |
| Relative Humidity | 0–95% | 0–95% | 0–95% |
| Altitude Limit | 1,000 m | 1,000 m | 1,000 m |
| Compliance Standards | IEC 62271-202, EN 50588-1, IEC 60076, IEC 62271-200, IEC 61439-1 | ||
