Monitoring Devices

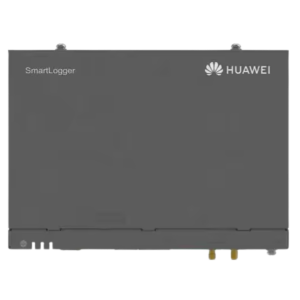

SmartLogger3000A

• Smart zero export control design

• Easy to install on site

• Reliable Safety by lightning protection module

• Max. Number of Connected Devices 80

• WAN WAN x 1, 10 / 100 / 1000 Mbps

• LAN LAN x 1, 10 / 100 / 1000 Mbps

• Data sheet
• User Manual

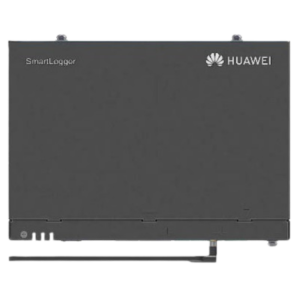

SmartLogger3000B

• Connecting up to 150 inverters, One-click commissioning

• Deployment wizard allowed, including parameters configuration, devices connection

• Safety improvement with built-in lightning protection module

• Max. Number of Manageable Devices 200

• Max. Number of Manageable Inverters 150

• WAN WAN x 1, 10 / 100 / 1,000 Mbps

• Data sheet
• User Manual

Smart Dongle-WLAN-FE

• Smart WLAN & Fast Ethernet (FE) communication

• Simple Plug & Play Support max. 10 devices

• Reliable IP65 Support auto reconnection

• Max. Devices Supported 10

• Max. Inverters Supported 10

• Ethernet Interface 10/100M Ethernet

• Data sheet
• User Manual

SmartDongle-4G

• Smart 2G, 3G, 4G communication 1

• Simple Plug & Play Support max. 10 devices

• Reliable IP65 Support auto reconnection

• Max. Devices Supported 10

• Max. Inverters Supported 10

• Connection interface USB

• Data sheet
• User Manual

SmartDongle-4G

SmartACU2000D

• Support one-click commissioning patented anti-PID module

• SmartPID2000 & SmartLogger3000B Pre-installed with multiple interfaces

• Reliable, industrial-level application and high reliability

• Technical Specifications:SmartACU2000-D-00

• Data sheet
• User Manual

Huawei Smart Communication Devices Comparison

Feature	SmartLogger3000A	SmartLogger3000B	Smart Dongle-WLAN-FE	Smart Dongle-4G	SmartACU2000D
Device Type	Data Logger & Smart Control	Data Logger & Smart Control	Wireless/Wired Communication Dongle	4G Communication Dongle	Smart Controller with Anti-PID Support
Max. Connected / Manageable Devices	80	200 (up to 150 inverters)	10	10	Depends on configuration (Preinstalled with SmartLogger3000B)
Communication Interface	WAN x1, LAN x1 (10/100/1000 Mbps)	WAN x1 (10/100/1000 Mbps)	Ethernet 10/100M	USB Interface	Multiple interfaces preinstalled
Network Type	Wired Ethernet	Wired Ethernet	WLAN + Fast Ethernet	2G / 3G / 4G	Wired Ethernet (with SmartLogger)
Lightning Protection	Built-in Lightning Protection Module	Built-in Lightning Protection Module	IP65 Protection	IP65 Protection	Industrial-level protection
Zero Export Control	Smart Zero Export Control Supported	Supported via Deployment Wizard	–	–	Supported via SmartLogger
Ease of Installation	Easy on-site installation	One-click commissioning with setup wizard	Plug & Play setup	Plug & Play setup	Preinstalled, ready-to-use
Auto Reconnection	–	Supported	Supported	Supported	–
Protection Rating	Standard Indoor Installation	Standard Indoor Installation	IP65 (Outdoor Ready)	IP65 (Outdoor Ready)	Industrial-grade protection
Special Features	Smart control, reliable lightning safety	Deployment wizard, advanced monitoring	Auto reconnection, compact wireless design	Mobile network communication, USB plug	Anti-PID, Smart control, multi-interface system
Typical Usage	Small-medium solar systems	Large solar plants and commercial setups	Small-scale PV systems	Off-grid or remote PV sites	High-reliability industrial PV systems
